230/450 LVL Sliding Gate Operators
Low Voltage
1
1
316 Stainless Steel Cover
1
1

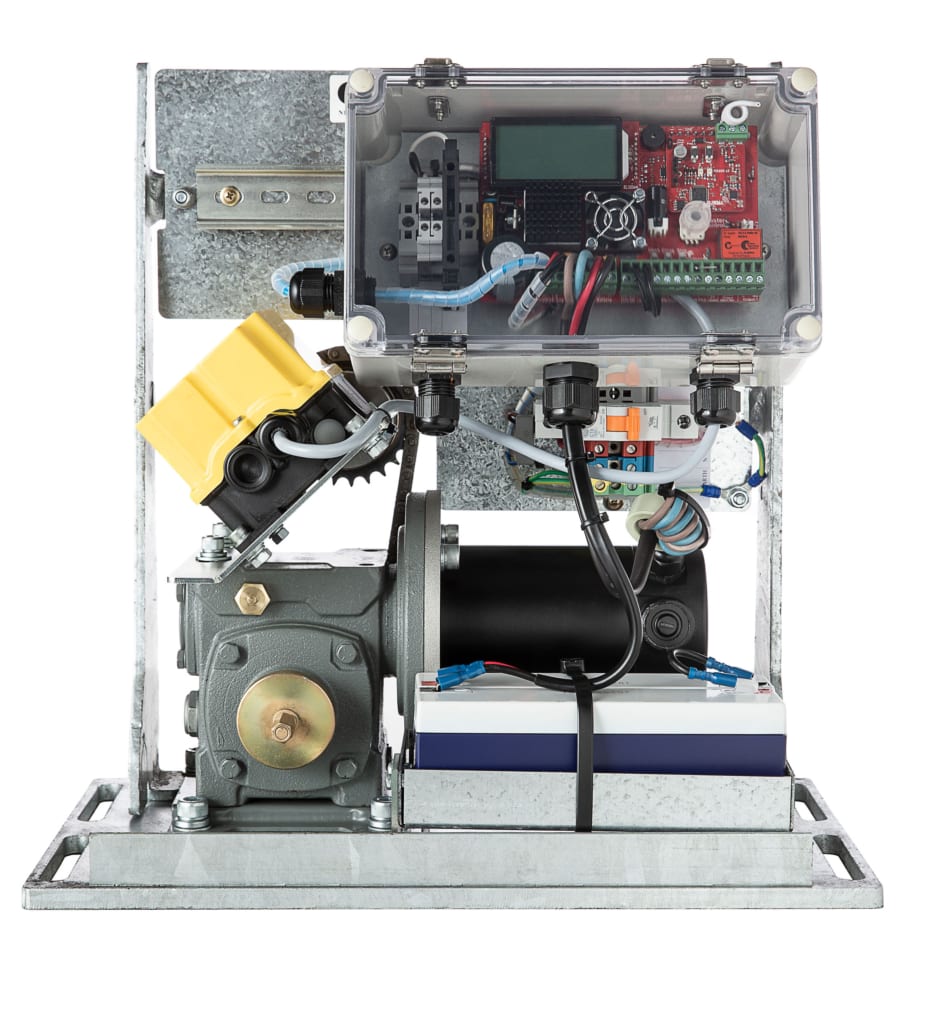

Inbuilt control panel with 24v supply and battery backup as standard
Low voltage sliding gate operators have been designed to fill a place in the market specifically for large industrial operators with low voltage requirements. These operators are for use on track gates on level ground.
Low voltage sliding gate operators
- compact
- quick fitting
- high duty cycle
- inbuilt control panel with 24v supply and battery backup as standard
- variable ramp up, ramp down, DC drive with variable open and close speeds
- 316 stainless steel cover
- control board has the facility for
– safety photo electric cells
– induction loops
– remote control
– contacts available for other functionality
Technical Specifications
| MODEL | 230 LVL | 450 LVL |
|---|---|---|
| Motor Power | 24v 120w DC | 24v 120w DC |
| Gate Size Max | 600kg, 8m approx | 500kg, 8m approx |
| Input Power | 240v AC or low voltage inc solar | 240v AC or low voltage inc solar |
| Speed | 230mm/sec ramp up ramp down feature | 450mm/sec ramp up ramp down feature |
| Duty Cycle | 100% | 100% |
| Battery Backup | 2 x 2.3 AH Batteries included | 2 x 2.3 AH Batteries included |
| Control Board | Elsema MCSv2 | Elsema MCSv2 |
