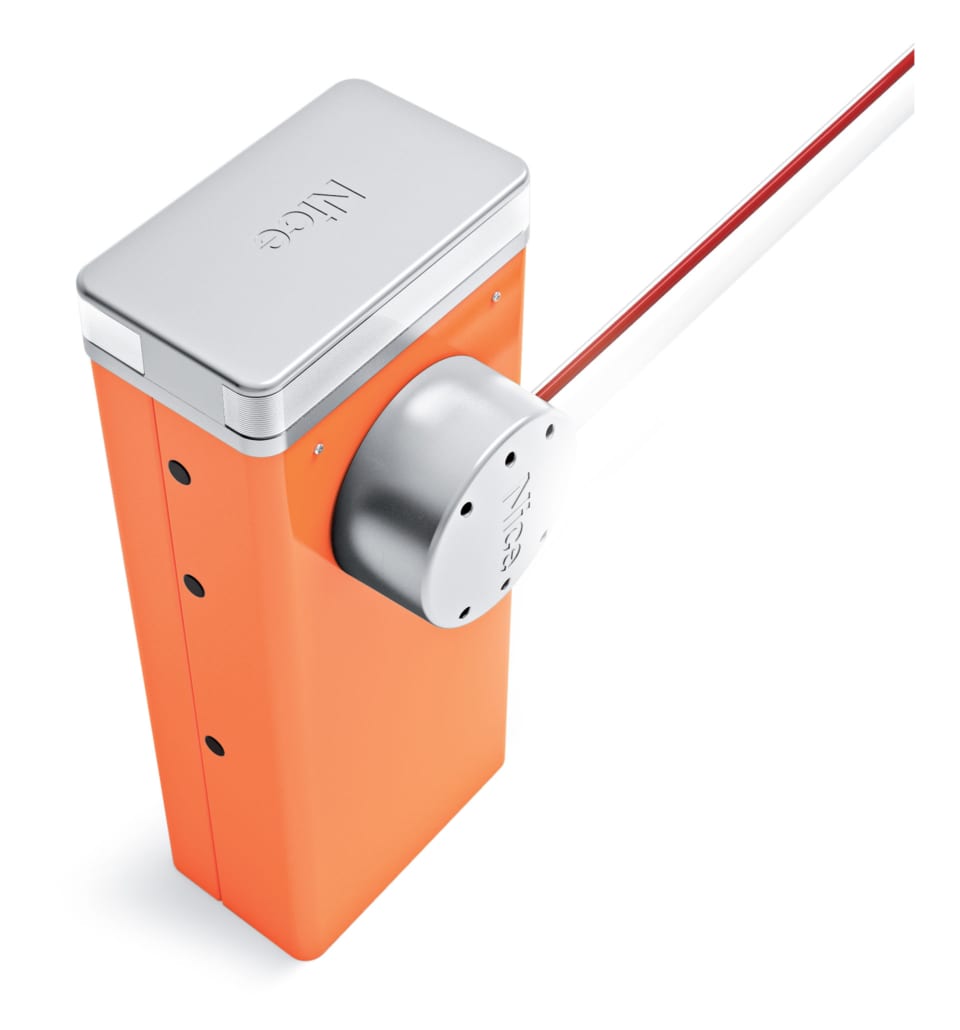

Electromechanical road barrier system for control of road access
Powerful and fast, for bars from 7 to 9 m.
24 Vdc gear motor with built-in control unit.
Simplified programming: control unit with display and joystick to make setting operating parameters even faster.
The control unit has an output to power 24 Vdc devices and two inputs to control loop detectors with the LP21 and LP22 accessories.
Modular: bars are easily assembled using the aluminium expansion joint.
Possibility for intelligent control of two opposing automations thanks to “master/slave” function.
Strength and reliability: tough steel structure, new robust balancing springs guaranteed to 2,000,000 cycles and elliptical section shaft with high resistance to gusts of wind.
Optional flashing or traffic light can be integrated in cover.
Encoder movement control and electromechanical limit switches.
More comfort and safety in programming and maintenance phases: the separate enclosures for electronics and mechanics protect internal parts from potential risks.
Rapid and easy access to the control unit located in the upper section of the barrier body.
Simple fixture of the completely concealed photocells onto the specially designed seats on the barrier body.
More safety and reliability: obstacle detection and monitoring of motor absorption during automation movement.
Automatic fault diagnostics during operation with consequent signalling of fault type through specific flash sequences.
Provision for connection of latest generation optical and resistive sensitive edges (with 8.2 KOhm resistance).
Energy saving: the system sets to standby when not in use to saven power.
No black out: with the optional batteries (PS224) housed inside the gear motor.
Release from side with metal key: can be installed on either side.
|L9BAR||With steel case with protective cataphoresis treatment and paint finish|
|L9BARI||With stainless steel case|
|Power supply (Vac 50/60 Hz)||230||230|
|Power supply (Vdc)||24||24|
|Speed (s)||8 -12 seconds per cycle||8 -12 seconds per cycle|
|Work cycle (cycles/hour)*||150||150|
|DIMENSIONAL AND GENERAL DATA|
|Protection level (IP)||54||54|
|Working temp. (°C Min/Max)||-20 – +50||-20 – +50|
|Dimensions (mm)||500 x 299 x 1215 h||500 x 299 x 1215 h|
Compatibility table with control systems and accessories
* Radio receiver incompatible with Opera system
