315LI/450LI/630LI/940PI Sliding Gate Operators
1
1
GDS 940 PI with smart inverter driven controls
940PI
1
1

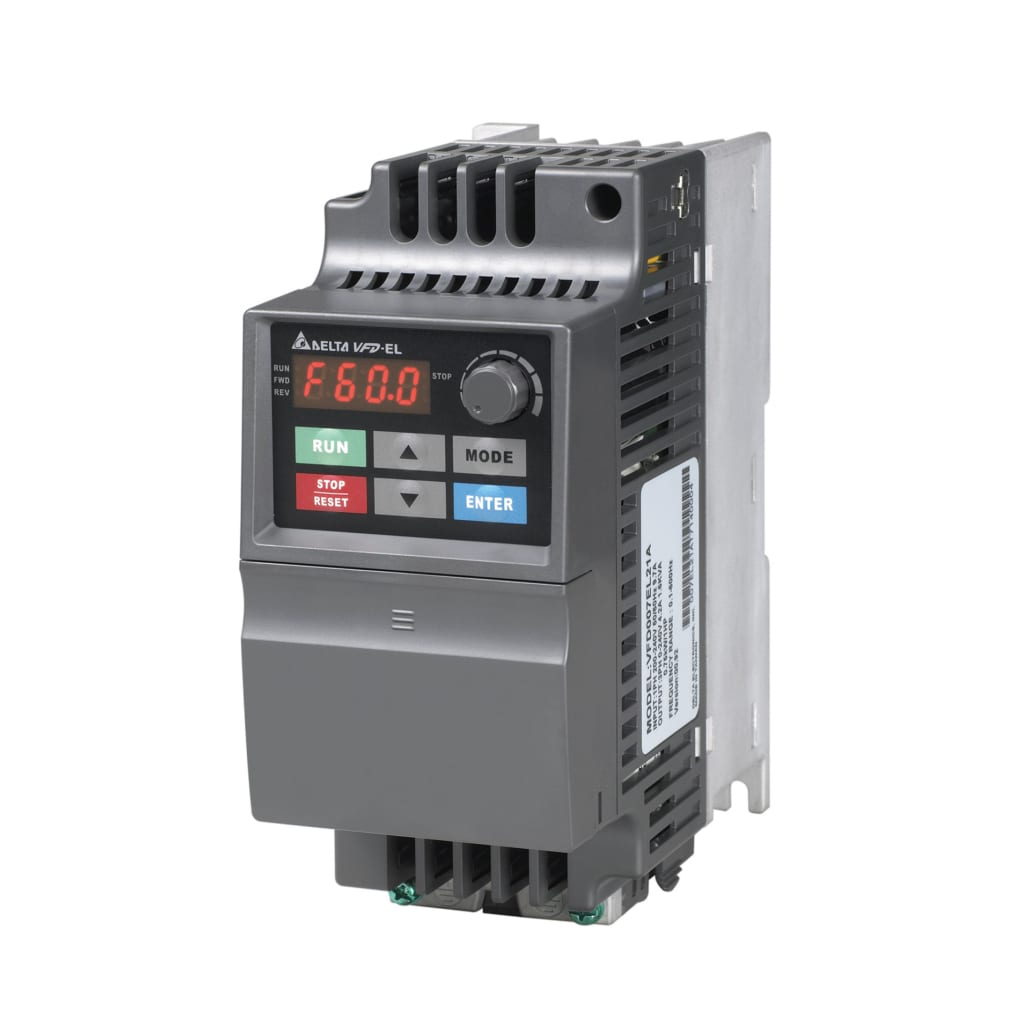

GDS 630 LI with Delta inverter
315LI/450LI/630LI
1
1
316 Stainless Steel Cover
Single phase 240v inverter driven sliding gate operators are designed to provide the force and intensity of a 3 phase motor with the convenience of single phase input.
Inverter upgrades available to suit your application.
Sliding gate opertors
- inverter driven with a powerful microprocessor control board which allows maximum functionality for easy control over ramp up/ramp down and opening/closing speeds for the ultimate experience in gate automation
- fast emergency stopping feature with inbuilt easy limits
- 100% duty cycle
- cast iron industrial grade gearboxes
Technical Specifications
| MODEL | 315 | 450 | 630 | 940 |
|---|---|---|---|---|
| Motor Power | 750w | 550w | 750w | 750w |
| Gate Speed (approx) | 315mm/sec | 450mm/sec | 630mm/sec | 940mm/sec |
| Input Power | 240v 10A | 240v 10A | 240v 10A | 240v 10A |
| Linear Force | up to 200kg | up to 80kg | up to 100kg | up to 100kg |
| Gate Weight | 3500kg | 800kg | 2000kg | 1000kg |

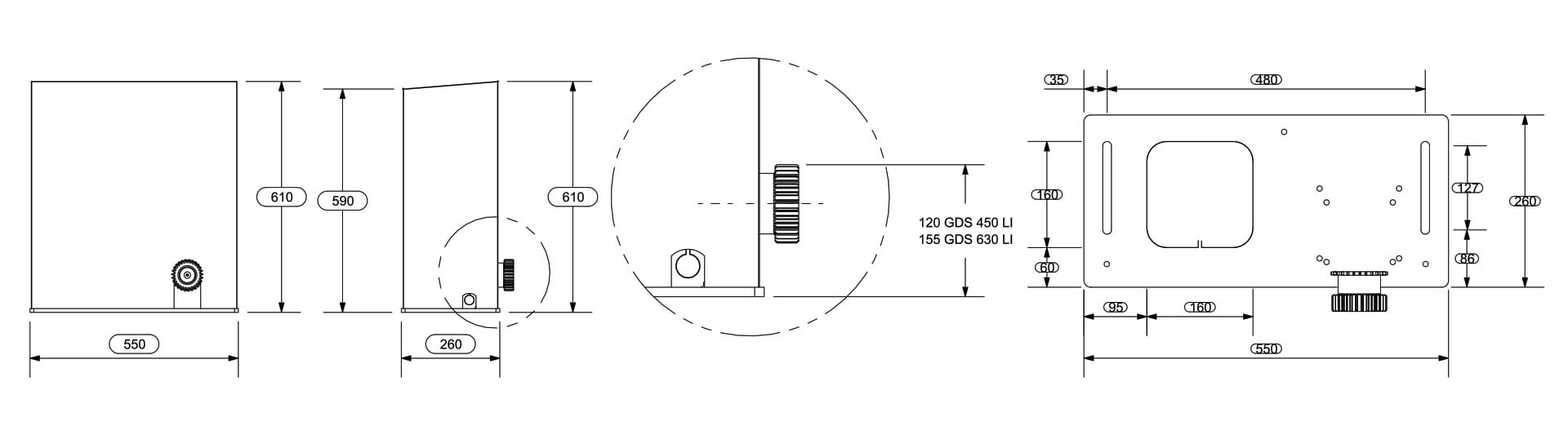

Dimensions
Accessories
