For swing gates with leaves up to 1.8 m and 100 kg

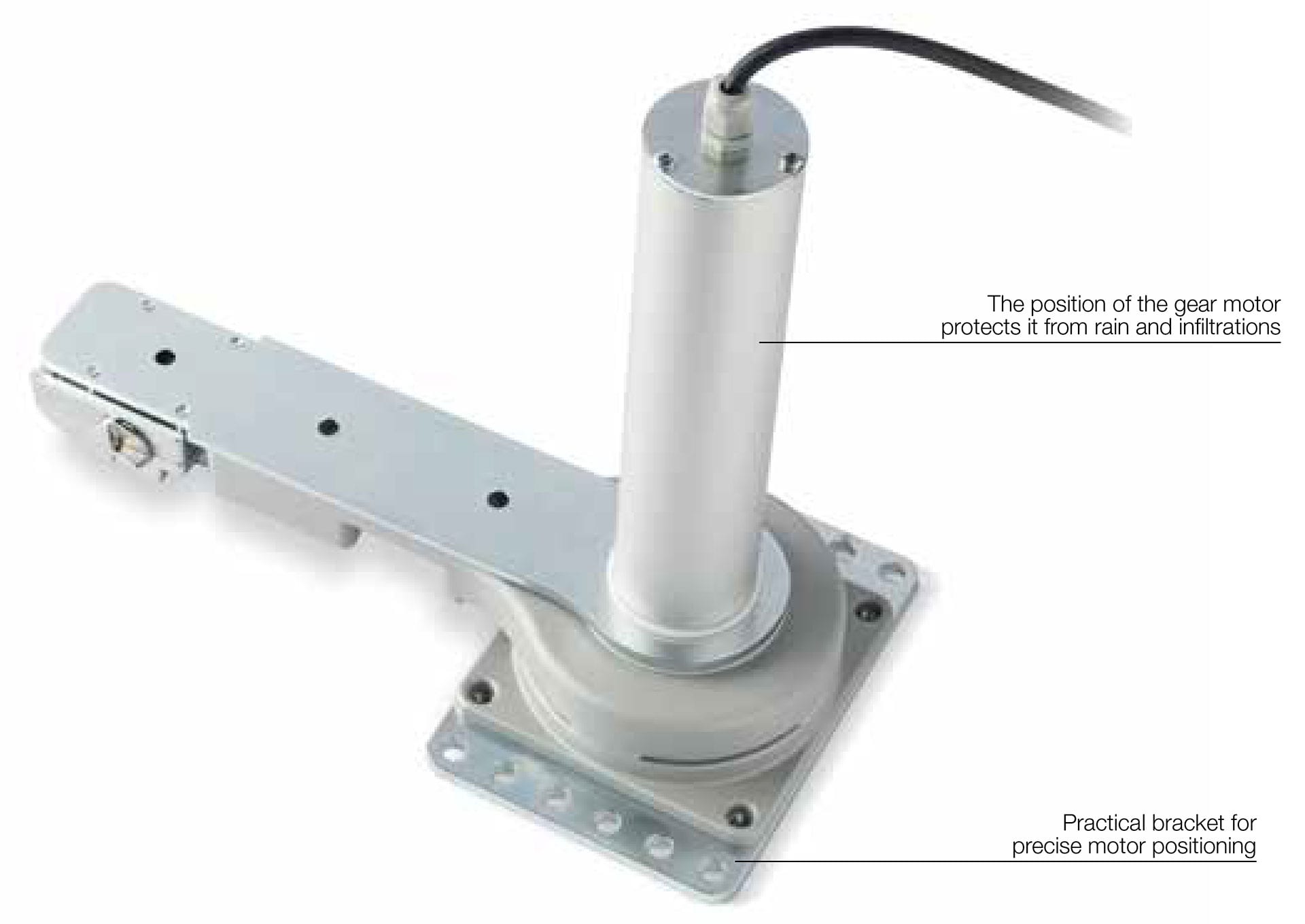

Concealed motor for swing gates.
24 Vdc irreversible electromechanical gear motor.
Minimum visual impact: the motor is small enough to be easily installed inside the profiles of the gate leaf or in very slim posts (with a minimum diameter of 55 mm).
Easy to install: the bottom-up installation simplifies fixing of the motor inside the post.
Resistant: die-cast aluminium structure, IP67, resists the most severe weather conditions.
Quick and reliable: complete opening (90°) of the leaf in about 10 seconds. Oltre has been tested for use at 60 cycles/hour, making it suitable for all contexts with intensive use.
Safe: easy-to-use external manual release: the gate can always be opened manually, without having to take it apart.
Dedicated Moonclever MC824L control unit:
- easy to programme;
- automatic memorisation of limit switches on opening and closing with self-learning function;
- automatic fault diagnostics;
- programming of pause time;
- pedestrian pass door;
- deceleration on opening and closing;
- obstacle detection with dual technology;
- operation in event of power failure by means of optional rechargeable batteries (PS324);
- provision for connection of resistive sensitive edges.
