Irreversible electromechanical 24 Vdc gear motor, ideal for intensive use

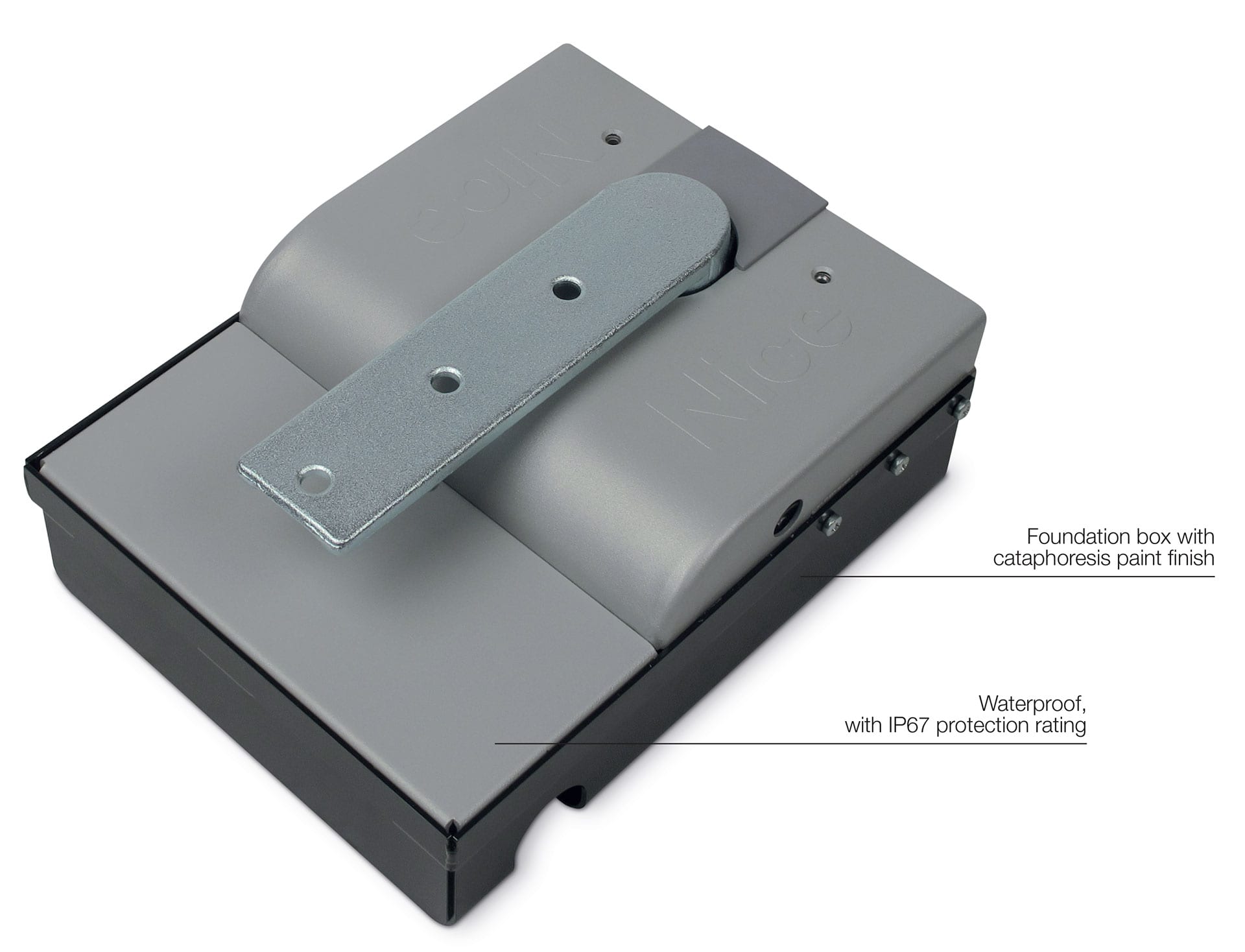

Sturdy and discreet: compact foundation box with a height of only 81 mm.

Steel with cataphoresis paint finish guarantees optimal resistance to corrosion, and thickness of 2.5 mm guarantees strength. Protrudes only 52mm above the ground.

Practical and quick installation: thanks to the exit lever on the gear motor attached directly on the leaf.

Opening up to 180° as standard.

Reliable and sturdy: the gear motor, in IP67 pressure die cast aluminium, suspended inside the housing to enable drainage of any deposits, ensures optimal water resistance.

Load-bearing foundation box with adjustable mechanical stops on opening and closing. The gear motor can also be installed later as required.

Practical release easy to operate from inside and outside, acting directly on the gear motor, easy to operate by means of the special key.

SFAB2024, compatible with the control unit Moonclever MC424L, and for operation with Solemyo and Opera systems:

• built-in radio receiver;
• simple programming, by means of a single key;
• automatic memorisation of limit switches on opening and closing with self-learning function;
• programming of pause time;
• pedestrian pass door;
• deceleration on opening and closing;
• obstacle detection system;
• provision for connection of latest generation resistive sensitive edges;
• operation in event of power failure by means of optional rechargeable batteries (PS124) with compartment in control unit.

SFAB2124 with magnetic encoder, compatible with control unit Moonclever MC824H, with BlueBUS technology, and compatible for operation with Solemyo and Opera systems:

• simple programming, by means of a single key;
• automatic memorisation of limit switches on opening and closing with self-learning function;
• automatic fault diagnostics;
• with output for courtesy light and maintenance indicator;
• speed settings on 5 levels;
• separate and configurable inputs for Step by Step, Open and Close;
• programming of pause time;
• pedestrian pass door;
• deceleration on opening and closing;
• obstacle detection with dual technology;
• provision for connection of latest generation resistive sensitive edges;
• operation in event of power failure by means of optional rechargeable batteries (PS324).
